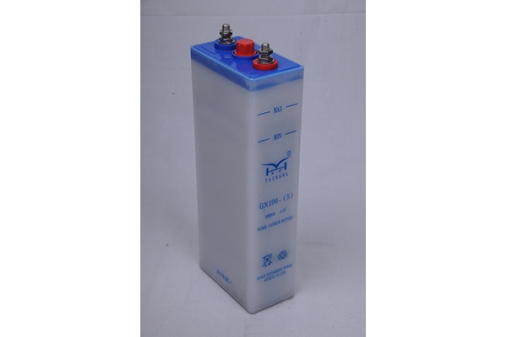

Nickel Cadmium Battery GN100-(5)Back
The GN100-(5) battery is specially designed for the particular use of railway locomotives and vehicles. Its performance can not only meet the requirements of locomotives and internal combustion engines, but also meet the use of electric locomotives a
1. Its excellent electrical performance make it possible to use in-40~+40℃
2. long service time, firm structure, resistance to over charging, resistance to over discharge
3.low loss of self discharge, high reliability, easy maintenance
Product parameter
Nominal voltage(V) | 1.2V | |
Nominal capacity（0.2ItA) | 100Ah | |
Battery size | long | 139 |
width | 79 | |
height | 334 | |
Overall Height | 362 | |
Mass | 6.5 | |
Terminal | M16 | |
Capacity （25℃） | 10 hours rate | 110% |
5 hours rate | 100% | |
3 hours rate | 60% | |
|
| |
Internal Resistance（25℃） | Full Charge | 10mΩ |
The discharge capacity of the battery in different temperature(25℃) | 40℃ | 95% |
25℃ | 100% | |
0℃ | 87% | |
-18℃ | 50% | |
The capacity after self discharge(25℃) | 28天 | 80% |
Cooperative partner
Application fields
It can be used in many aspects such as railway vehicle, communication base station, electric appliances, telecommunications, lighting, power device of standby power supply and dc operation power, as well as the oil machine, dc motor startup power source, means of transport of the dc power supply, etc.
