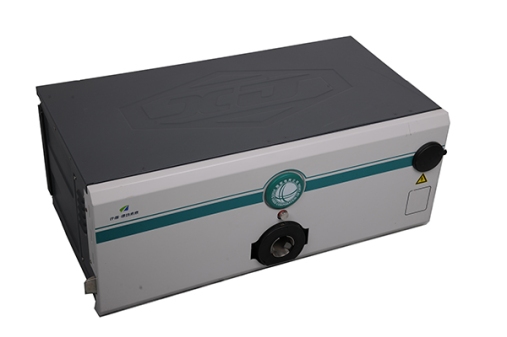

Lithium Iron Phosphate Type Pure Electric Bus THE504-317Back
The THE504-317 power system is a lithium iron phosphate battery system, which is a power system designed for Yutong pure electric buses. It has insulation detection functions, short-circuit protection, and has protective measures such as waterproof,
With insulation detection function, short circuit protection, waterproof, dustproof, fireproof and other protective measures;
Each box is equipped with a maintenance switch, which can realize the quick break function of the circuit. The fuse is installed in the power supply system with short-circuit protection function.
Product parameter
No. | Items | Parameter |
1 | rated capacity | 317Ah |
2 | nominal voltage | 537.6V |
3 | type of battery | Lithium iron phosphate IFR26650E-3300 |
4 | model of power source system | THE504-317 |
5 | combination mode | 168S96P |
6 | specification of battery pack | 76.8V/317Ah、38.4/317Ah |
7 | maximum charging current | 300A |
8 | maximum discharge current | 400A |
9 | boundary dimension (mm) | 830（long）×780（width）×330（height） 830（long）×460（width）×330（height） |
Cooperative partner
Application fields
pure electric coach, pure electric buses
