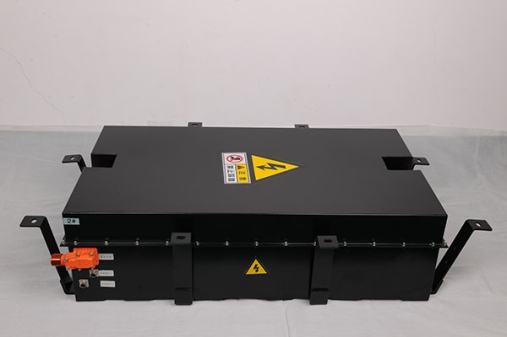

Ternary type pure electric logistics vehicle THE312-104Back
This model of power type ternary battery power system has functions including insulation detection, short circuit protection and fast break, etc. It applies omniseal tank and has protective measures including water proofing, dust prevention and fire
Product parameter
Serial number | items | Conventional parameters |
1 | rated capacity | 104Ah |
2 | nominal voltage | 374.4V |
3 | type of battery | Three yuan material INR18650-2600mAh |
4 | model of power source system | THE312 -104 |
5 | combination mode | 104S40P |
6 | Battery pack specifications | 374.4V/104Ah |
7 | maximum charging current | 62.4A |
8 | maximum discharge current | 104A |
9 | boundary dimension (mm) | 1810(L)*631.5(W)*206(H) |
Cooperative partner
Application fields
City logistics vehicle, inter-city logistics logistics vehicle
